How to Use VFDs (Variable Frequency Drives) for Motor Control
Introduction – Let’s Talk Motor Control
Ever tried to slow down a fan without it sounding like it’s struggling to breathe? That’s where VFDs step in. VFD motor setup guide handy devices are the secret sauce behind smooth, energy-efficient motor control. Whether you’re into industrial automation or DIY projects, VFDs can seriously level up your game.
Title: IP Cameras vs. Analog Cameras: Which is Better for Home Security?
What Is a VFD, Anyway?
Breaking It Down

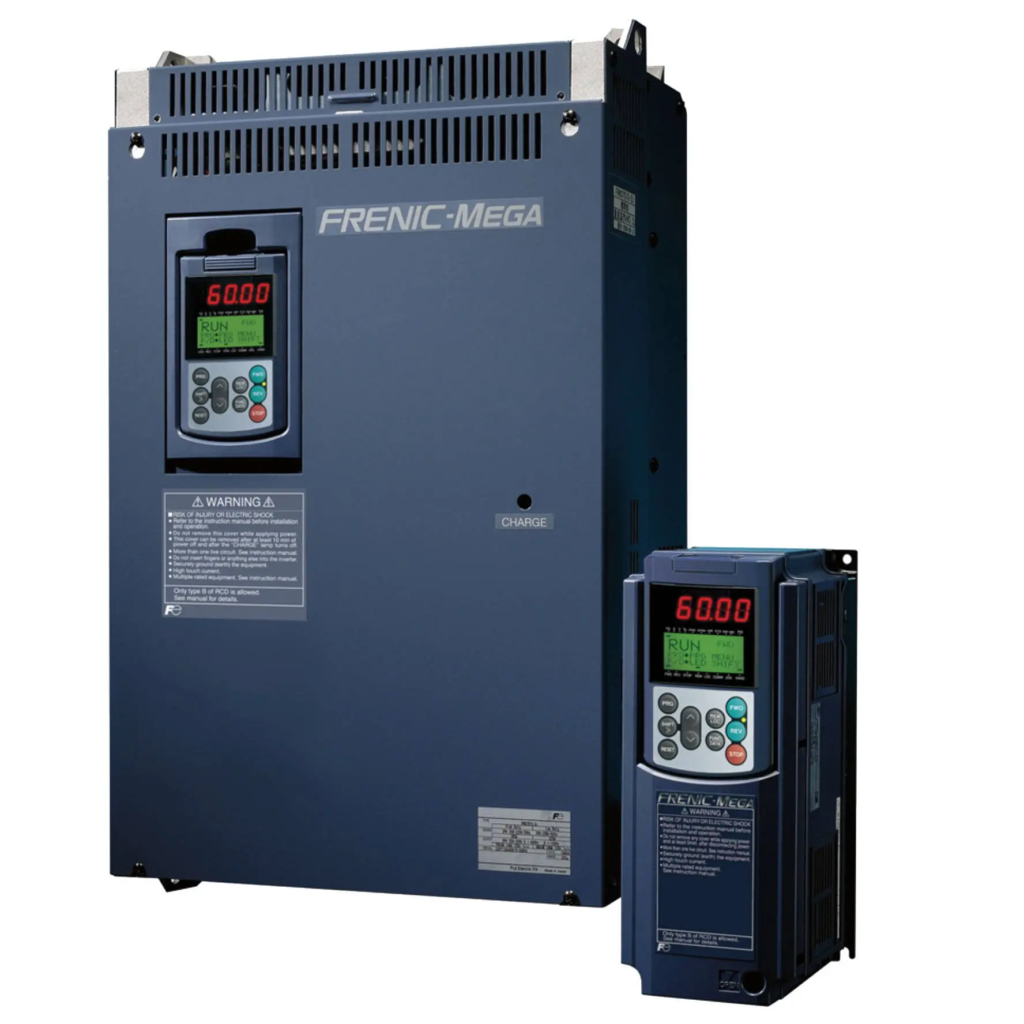

A Variable Frequency Drive (VFD) is an electronic controller that adjusts a motor’s speed and torque by changing its input frequency and voltage.
Why Use VFDs for Motor Control?
Energy Efficiency
Lower speed = lower energy bills. It’s that simple.
Smooth Operation
VFDs prevent motors from jerking during startup. No more wear and tear.
Flexibility
VFD motor setup guide, made you need to speed up or slow down? Adjust on the fly with VFDs.
How Does a VFD Work?
The Science-y Stuff (Made Simple)
Think of it as a DJ remixing electricity. It takes AC power, converts it to DC, then back to AC at the frequency you want. That’s how you control the motor speed.
How to Use Drones for Home and Property Surveillance: A Complete Guide
Where Are VFDs Used?
Everyday Applications
From elevators and HVAC systems to conveyors and fans VFDs are everywhere.
Choosing the Right VFD
Size Matters
VFD motor setup guide, match your motor’s voltage and current ratings with the VFD.
Environment Counts
Got dust or moisture? Get a VFD with the right protection rating.
Basic Setup of a VFD
Connect the Power
Link the VFD to the power source and motor follow the manual religiously!
Configure the Parameters
Use the VFD panel to set motor specs like voltage, frequency, and acceleration time.
Tips for Smooth Operation
Use Shielded Cables
Reduce electrical noise by using proper cabling.
Don’t Skip the Manual
Each VFD has its quirks. The manual is your best friend.
Common Mistakes to Avoid
Skipping Proper Grounding
No grounding = risk of shock and performance issues.
Overloading the Drive
Stick to the rated load. Pushing it too far can fry the system.
Troubleshooting Basics
Error Codes Are Clues
Each error code means something. Use it to diagnose issues.
Check the Wiring
Loose wires? That’s often the culprit when things go haywire.
Safety First
Always Power Down
Before making changes, make sure everything’s off. Electricity doesn’t play nice.
Real-Life Example – Fan Control Made Easy
Say goodbye to noisy fans that run at full blast all the time. With a VFD, you can fine-tune the speed to your liking. It’s like putting your fan on cruise control.
The Future of VFDs
Expect smarter drives with IoT features, remote monitoring, and even AI-based diagnostics.
Conclusion – Take Control
Using a VFD isn’t rocket science, but it sure feels like magic once you see it in action. With the right setup, you’ll boost performance, save money, and extend your motor’s life. Ready to plug in?
FAQs
1. Can I use a VFD with any motor?
Nope! VFDs work best with three-phase AC motors. Check compatibility before buying.
2. Do VFDs save energy?
Absolutely. They reduce power consumption by controlling motor speed based on demand.
3. Can I install a VFD myself?
If you’re familiar with basic wiring and follow the manual yes. If not, call a pro.
4. How long does a VFD last?
Typically 10–15 years, depending on usage and environment.
5. Is a VFD the same as a soft starter?
Nope. A soft starter limits current at startup. A VFD gives full-speed control.
