Train journeys have long been a cornerstone of global transportation, offering a convenient and eco-friendly way to travel. However, ticket verification often remains a manual, time-consuming process prone to errors. Imagine a system where passengers simply tap an RFID card, and their journey details are logged instantly. Welcome to the world of RFID Train Passenger Authentication Systems, a game-changer for secure, automated ticketing.
This tutorial dives into the workings, benefits, and implementation of an RFID-based system that enhances ticket verification, saves time, and reduces fraud. Let’s explore how you can bring this futuristic solution to life.
What is RFID Technology?

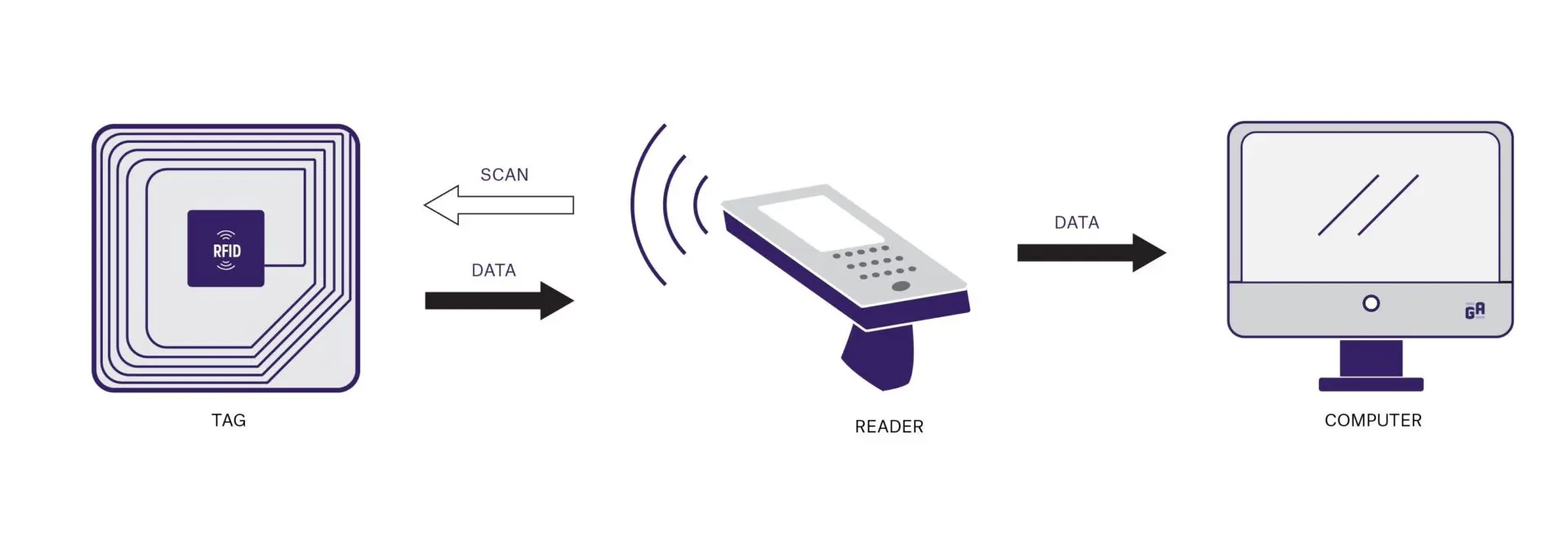

RFID (Radio Frequency Identification) is a wireless communication technology that uses electromagnetic fields to identify and track objects. An RFID system comprises:
- Tags (or RFID cards): Contain unique data.
- Readers: Emit signals to detect tags and extract data.
- Software: Processes and stores the information.
RFID operates on various frequencies, including low-frequency (LF), high-frequency (HF), and ultra-high-frequency (UHF), each suited to specific applications.
Read Also: Smart Doorbell for Home Automation Arduino ESP32 Cam
How Does an RFID Train Passenger Authentication System Work?
An RFID train passenger authentication system uses RFID cards issued to passengers. These cards act as digital tickets linked to personal profiles and journey details in a central database.
Here’s how the process unfolds:
- Passenger Check-In: Passengers tap their RFID cards at a station kiosk or on-board reader.
- Data Validation: The system cross-checks the card data with the backend database.
- Journey Logging: Details like boarding station, destination, and fare are logged.
- Ticket Confirmation: A display unit shows the passenger’s journey details and status.
Read Also: How Future Technology May Impact Pregnancy and Childbirth
Key Components of the System
RFID Reader
The reader communicates with RFID cards to retrieve passenger data. Common choices include MFRC522 or PN532 modules for Arduino-based projects. For this project design, we will be using the MFRC522 module.
RFID Cards

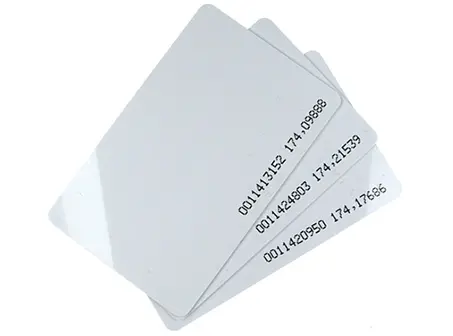

These cards hold a unique ID linked to the passenger’s account. They can be recharged or programmed for specific journeys.
Arduino Development Board

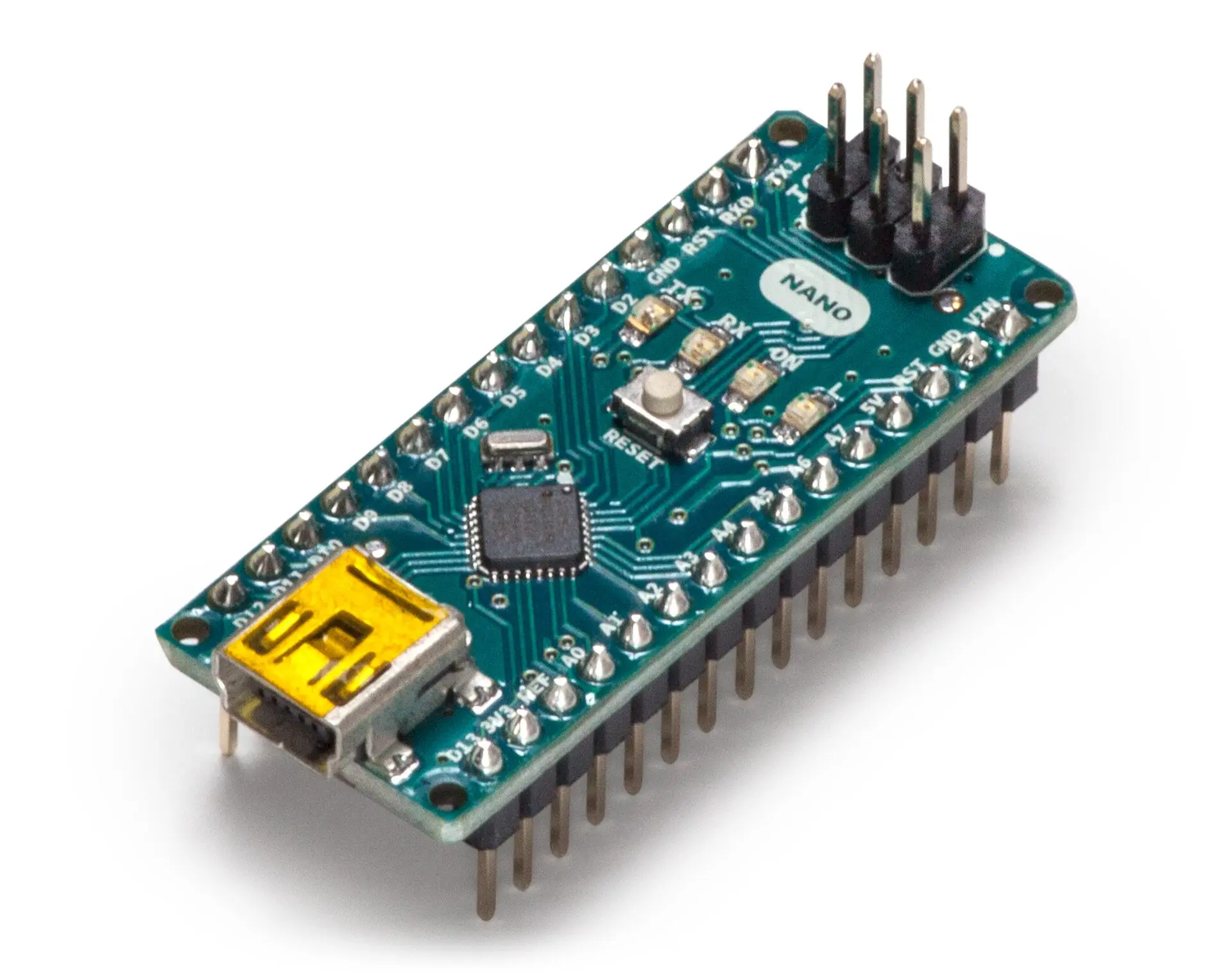

The microcontroller development board used for this project is the Arduino Nano development board. This processes data from the RFID reader and interacts with the database.
Database System (Optional)

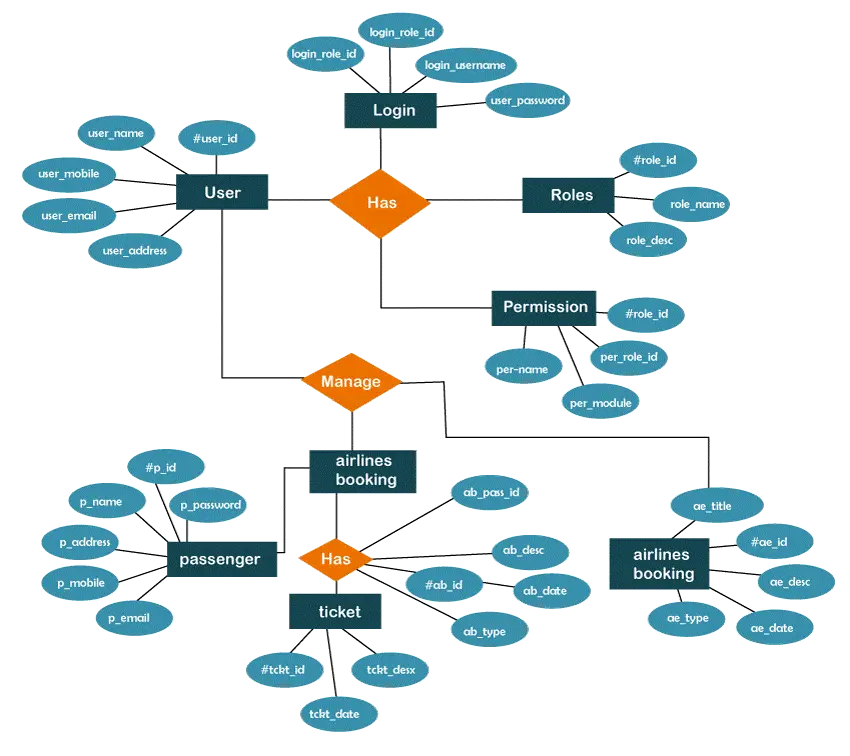

A backend database stores passenger profiles, ticket details, and journey logs. Cloud-based solutions like Firebase or on-premises databases like MySQL are popular options.

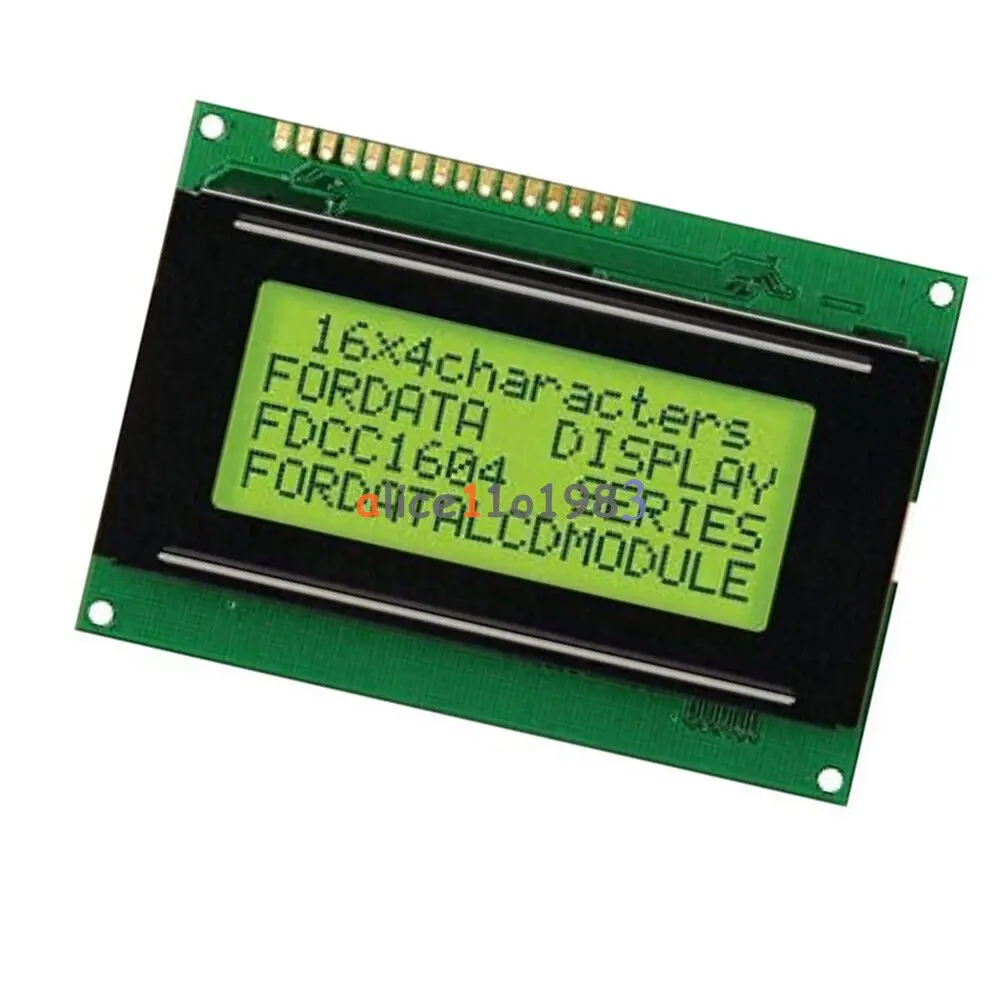

Display Unit (1604 LCD module)
An LCD screen was used to display the ticket status, fare, and other relevant information to passengers.
Benefits of RFID in Train Authentication
1. Enhanced Security
RFID systems reduce the risk of counterfeit tickets by linking cards to a secure database.
2. Improved Passenger Convenience
No more fumbling with paper tickets or waiting in long queues. Tap-and-go authentication streamlines the process.
3. Fraud Prevention
The system ensures only valid, registered passengers can access train services.
4. Cost Efficiency
Automating ticket verification minimizes the need for manual staff, reducing operational costs over time.
Read Also: IoT Smart Doorbell With Email Alert, Video Stream, Arduino and Blynk
How to Build an RFID Train Passenger Authentication System
The Required Components
- Arduino Uno
- MFRC522 RFID Reader
- RFID Cards or Tags
- 16×2 LCD Display Module
- Buzzer (for alerts)
- Pushbuttons (optional for manual operations)
- Power Supply
- Jumper Wires
- Database Software (MySQL )
The Schematic Diagram: A Step-by-Step Guide

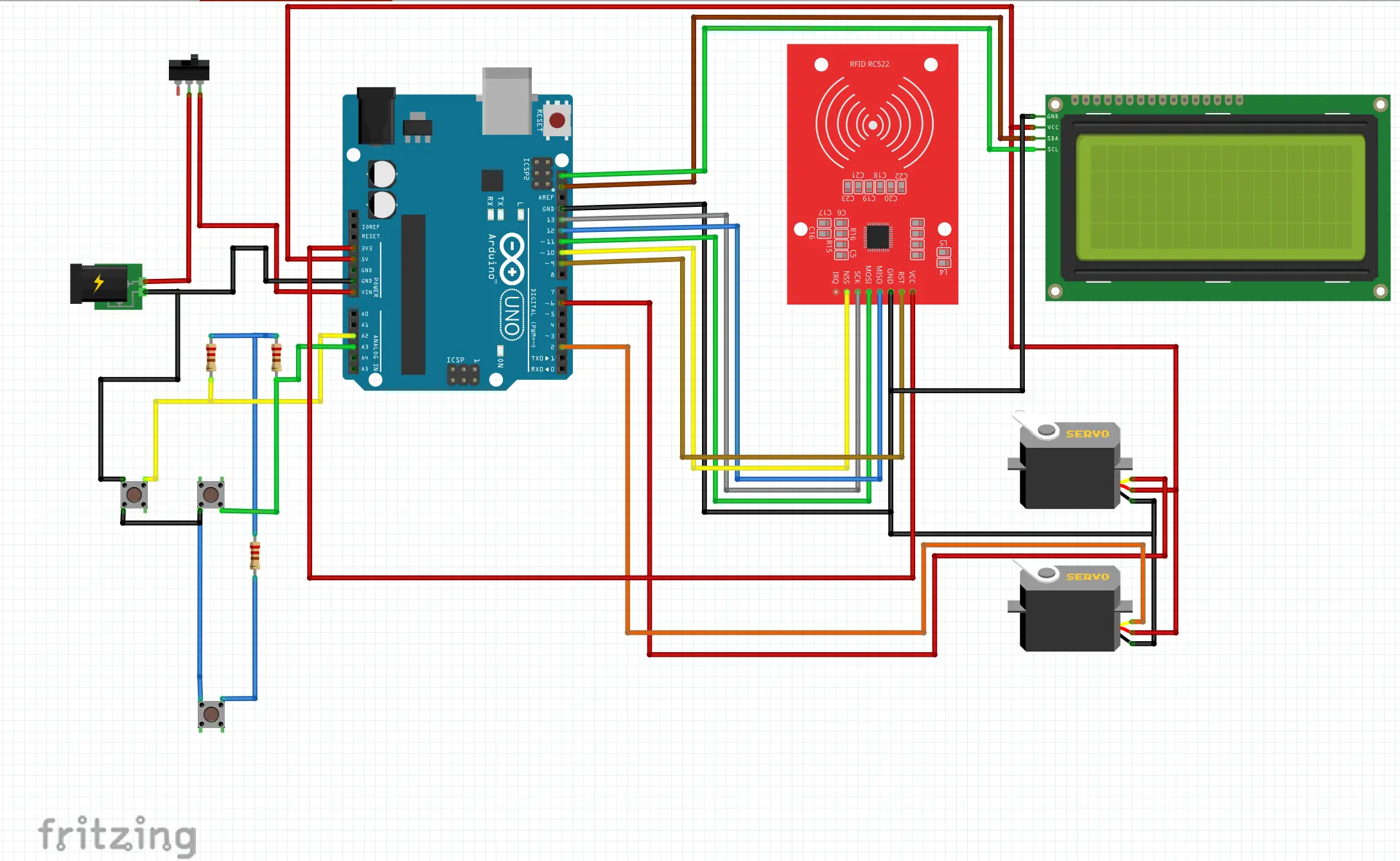

Explanation of Schematic Diagram: Set Up the Hardware
- Connect the RFID reader to the microcontroller.
- Interface the LCD display and buzzer for output feedback.
- Power up the system using a stable power supply.
Program the Microcontroller
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <SPI.h>
#include <MFRC522.h>
#include <Servo.h>
#define SS_PIN 10
#define RST_PIN 9
MFRC522 mfrc522(SS_PIN, RST_PIN); // Instance of the class
Servo myservo1;
Servo myservo2;
Servo myservo3;
Servo myservo4;
int pos = 0;
MFRC522::MIFARE_Key key;
// Set the LCD address to 0x27 for a 16 chars and 2 line display
LiquidCrystal_I2C lcd(0x27, 16, 2);
void setup() {
lcd.init(); // initialize the lcd
lcd.init();
SPI.begin();
// Initiate MFRC522
mfrc522.PCD_Init();
}
TO SEE THE REST OF THIS CODE, COMMENT BELOW FOR IT
Explanation of Arduino Code
The Arduino code is written as shown above, And we uploaded the code to process RFID data and communicate with the database. Libraries like MFRC522 for Arduino simplify RFID operations.
Test the System
We proceeded to simulate passenger check-ins and verify that the RFID reader correctly logs data into the database and displays output.
Use Cases and Applications
- Urban Rail Systems: Simplify ticketing for subways and metros.
- Long-Distance Trains: Enable seamless check-ins for intercity travel.
- Event Transportation: Manage passenger flow for large gatherings.
Challenges and Limitations
1. Initial Setup Costs
Installing RFID infrastructure can be expensive, especially for large-scale networks.
2. Data Security
Storing passenger details demands robust cybersecurity measures to prevent breaches.
3. Reader Range Limitations
RFID readers must be within close proximity to tags for successful scanning.
The Future of RFID in Public Transportation
With advancements in IoT and AI, RFID systems will integrate with smart city frameworks, enabling real-time passenger tracking, dynamic fare calculation, and predictive analytics. Combining RFID with biometric authentication could further enhance security and convenience.
Conclusion
The RFID Train Passenger Authentication System is a leap toward smarter, more efficient public transportation. By automating ticket verification, this technology offers unparalleled convenience and security for both passengers and operators. Whether you’re a tech enthusiast or a transportation professional, this system is an innovation worth exploring.
FAQs
1. How does RFID improve train ticketing systems?
RFID automates ticket verification, reducing manual errors, enhancing security, and speeding up the boarding process.
2. Is RFID technology secure for passenger data?
Yes, with proper encryption and secure databases, RFID systems protect passenger data effectively.
3. Can this system handle high passenger volumes?
Absolutely! RFID systems are designed to process multiple scans rapidly, making them ideal for crowded train stations.
4. What happens if a passenger loses their RFID card?
Lost cards can be deactivated in the database, and a replacement card can be issued to the passenger.
5. Can this system integrate with mobile payment apps?
Yes, RFID can complement mobile payment systems, allowing passengers to recharge cards via apps for added convenience.
This guide equips you with everything you need to know about RFID train passenger authentication systems. Ready to transform your ticketing process? Share your thoughts or questions in the comments below!
