Solar energy is the future, and installing a solar power system is a fantastic way to cut down on electricity costs, reduce carbon emissions, and gain energy independence. This comprehensive guide will take you through everything you need to know about solar inverter installation—from mounting panels on your roof to choosing and installing the right batteries. Whether you’re setting up a small system for your home or a large-scale system for a business, this guide has you covered.
Why Choose Solar Power?
Solar power has numerous advantages:
- Cost Savings: Solar energy drastically reduces electricity bills.
- Sustainability: It’s a clean, renewable source of energy.
- Energy Independence: Say goodbye to power outages and dependency on the grid.
- Increased Property Value: Solar installations can boost the resale value of your property.
Components of a Solar Power System
Before diving into the installation process, let’s break down the key components of a solar power system:
1. Solar Panels
Solar panels are the heart of your system, converting sunlight into electricity. Panels should be mounted to maximize sunlight exposure.
You offer free professional consultation on TELEGRAM or on WHATSAPP. You can reach us there.
2. Solar Inverters
Solar inverters convert the direct current (DC) produced by solar panels into alternating current (AC), which powers your appliances. Inverters come in sizes ranging from 2.5kVA for residential setups to 40kVA for large-scale systems.

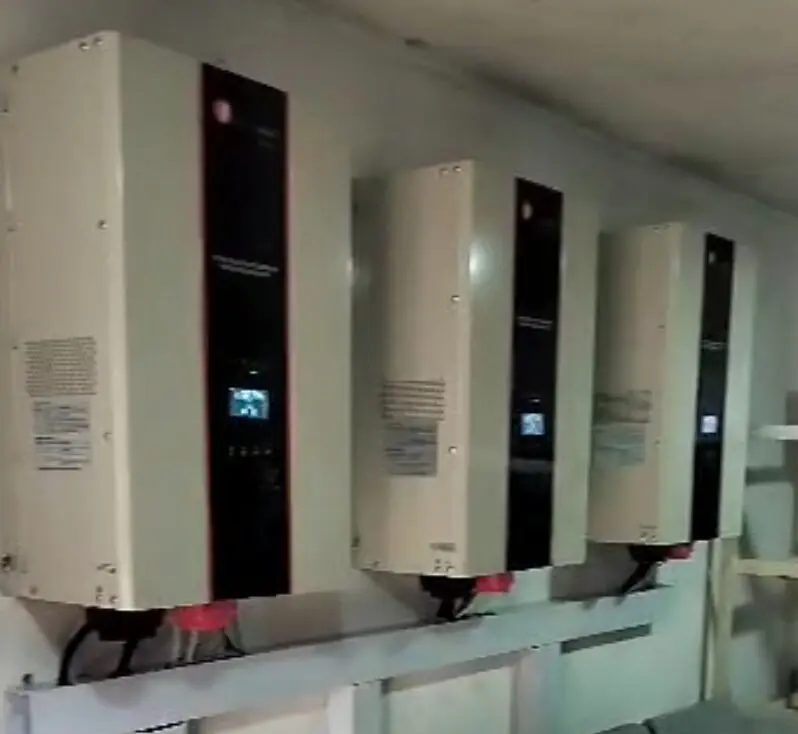

As shown above, for this installation, we used 3 pieces of Felicity 10KVA inverters. This used the installation to 30KVA capacity.
Read Also: How to Build A Solar Tracker With Weather Station Monitoring
3. Batteries
Batteries store solar energy for use at night or during cloudy days.
- Lithium-Ion Batteries: Lightweight, efficient, and long-lasting (up to 15kWh capacity).
- Tubular Batteries: Cost-effective, durable, and reliable for deep cycling (100AH and beyond).
4. Mounting Structures
These secure the panels to your roof or ground installation.
5. Charge Controllers
These devices regulate the voltage and current flowing from the panels to the batteries.
6. Wiring and Accessories
High-quality cables, connectors, and circuit breakers ensure the system functions safely and efficiently.
Step-by-Step Guide to Solar Inverter Installation
Step 1: Evaluate Your Energy Needs
Start by calculating your daily energy consumption. Use your electricity bill to determine your kWh usage. This will guide you in choosing the right size for your solar system.
Step 2: Select Your Equipment
- Panels: Choose based on available roof space and energy requirements.
- Inverter: Match the inverter’s capacity to your load requirements.
- Batteries: Decide between lithium-ion and tubular batteries based on budget and performance needs.
Step 3: Design the System Layout

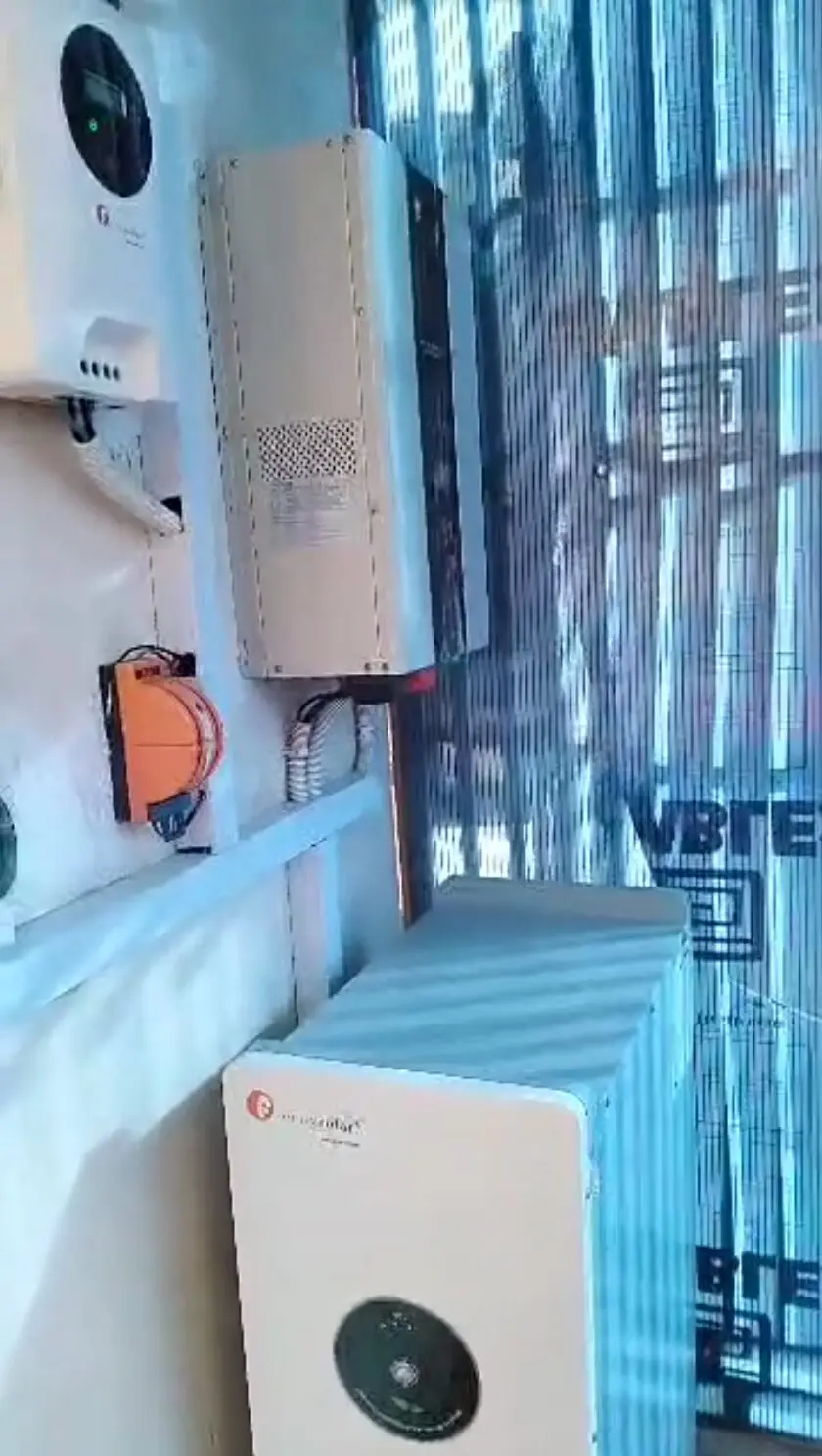

Plan the placement of the panels, inverter, and batteries. The layout should ensure easy access for maintenance and optimal efficiency.
Step 4: Install the Mounting Structures
- Fix the Structure: Secure the mounting structure on the roof, ensuring it’s tilted at the optimal angle (15°-30°).
- Ensure Stability: Check that the structure can withstand wind and weather conditions.

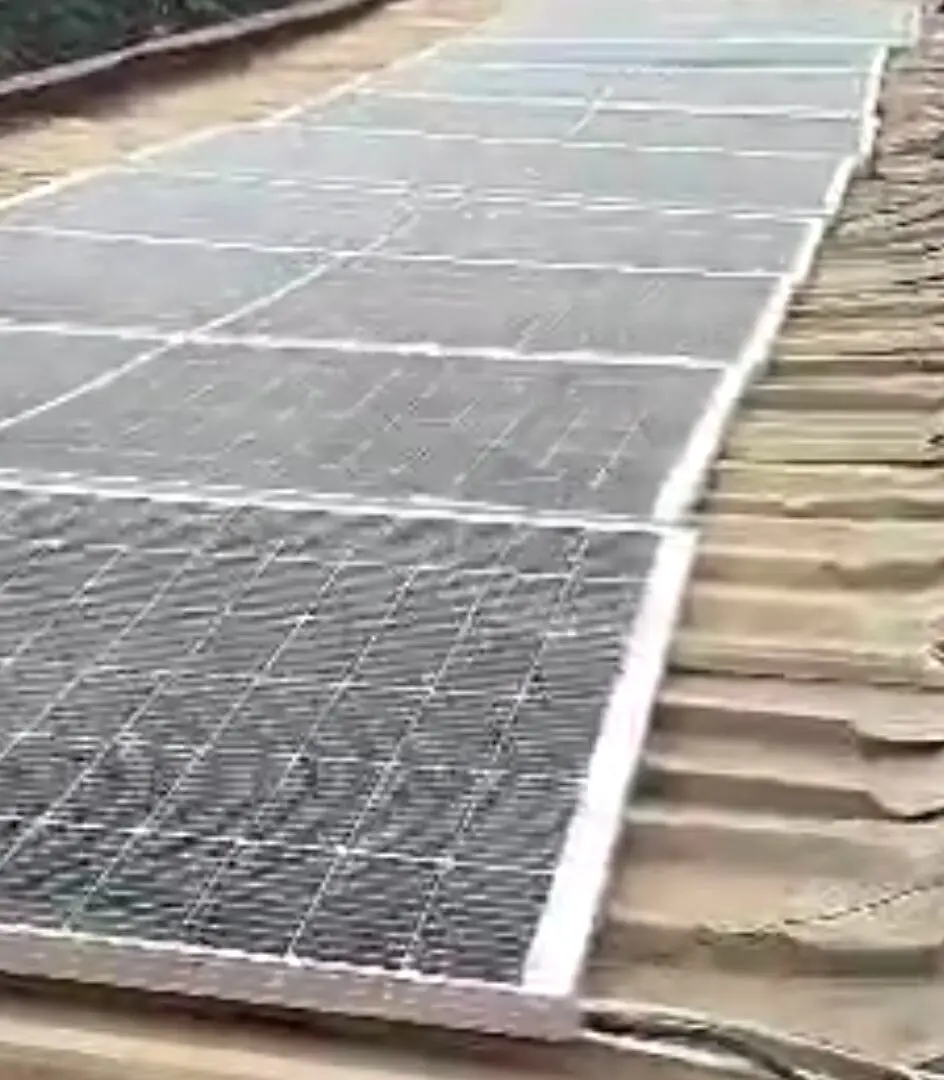

Step 5: Mount the Solar Panels
- Attach Panels: Secure the panels to the mounting structure with clamps.
- Connect the Panels: Wire the panels in series or parallel based on your system voltage requirements.
- Run the Cables: Use UV-resistant cables to connect the panels to the inverter.

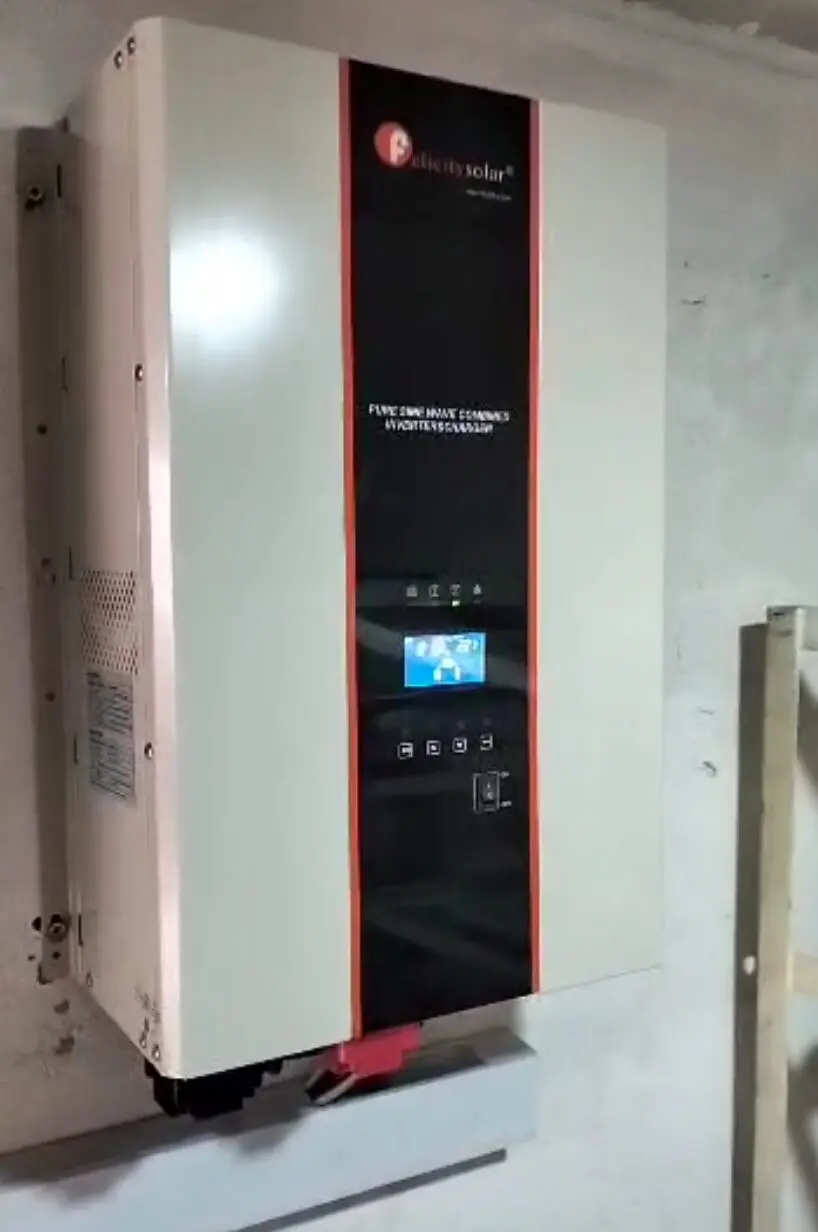

Step 6: Set Up the Inverter
- Choose the Location: Install the inverter in a shaded, well-ventilated area to prevent overheating.
- Connect Panels to Inverter: Match the DC output of the panels to the inverter’s DC input.
- Link to the Grid (Optional): For hybrid systems, connect the inverter to the main electrical grid.
Step 7: Install the Batteries

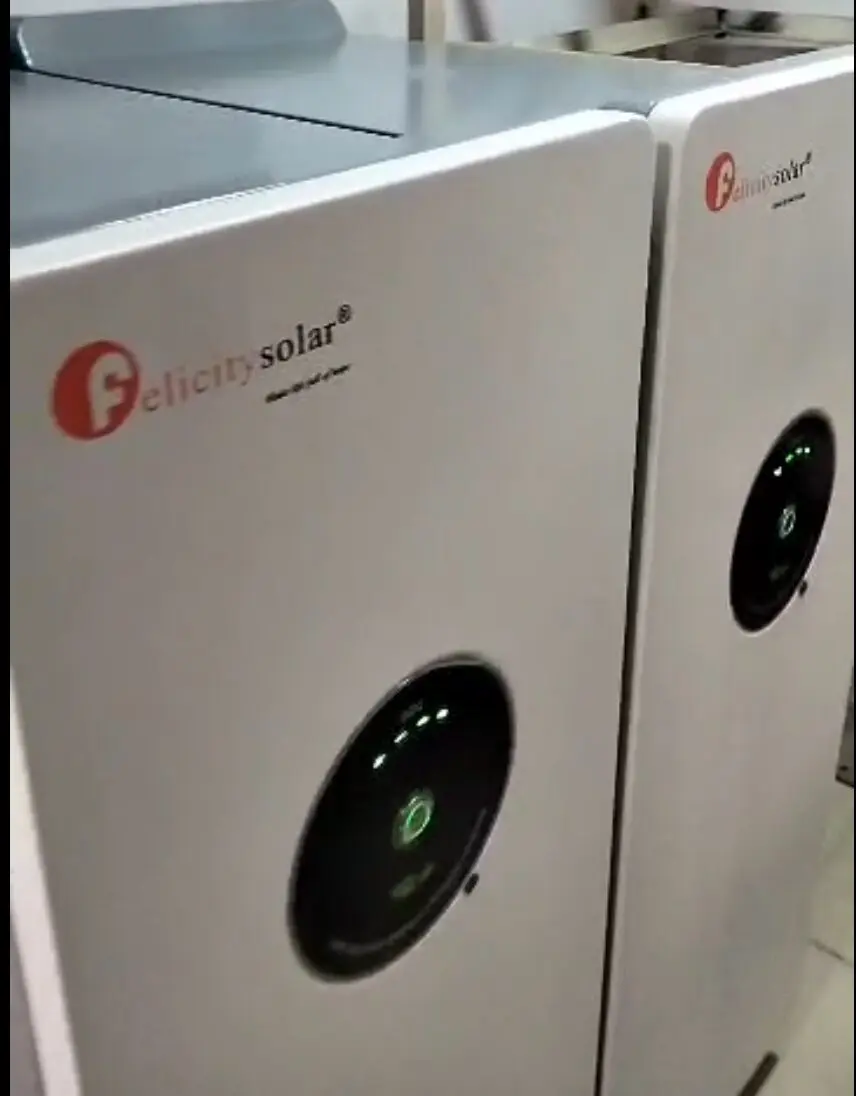

Lithium-Ion Batteries:
- Position in a temperature-controlled area.
- Connect the battery management system (BMS) to monitor performance.
- Wire to the inverter.
Tubular Batteries:
- Use a ventilated rack to prevent gas buildup.
- Connect in series or parallel, depending on the desired voltage.
Step 8: Wire the System
- Use proper connectors to link the panels, inverter, and batteries.
- Add circuit breakers and fuses for safety.
- Ensure all connections are tight and insulated.
Step 9: Test the System
- Turn on the inverter and check its status indicators.
- Confirm that the batteries are charging and discharging correctly.
- Test the system’s output using a multimeter.
Step 10: Final Checks
- Inspect all connections.
- Ensure the panels are clean and properly aligned.
- Verify that the system meets safety standards.
Choosing the Right Batteries
When deciding between lithium-ion and tubular batteries, consider the following:
| Feature | Lithium-Ion | Tubular |
|---|---|---|
| Cost | Higher upfront cost | More affordable upfront |
| Lifespan | 10+ years | 4-5 years |
| Maintenance | Minimal | Regular maintenance |
| Energy Density | High | Medium |
| Weight | Lightweight | Heavy |
Our Various Installation Package
Residential Setup (2.5kVA)
- Panels: 1kW solar array.
- Inverter: 2.5kVA hybrid inverter.
- Battery: 100AH tubular battery.
- Outcome: Powers lights, fans, and a refrigerator with backup.
Commercial Setup (40kVA)
- Panels: 20kW solar array.
- Inverter: 40kVA hybrid inverter.
- Battery: 15kWh lithium-ion pack.
- Outcome: Runs office equipment, HVAC, and lighting with zero reliance on the grid.
Maintenance Tips
- Clean Panels Regularly: Dust and debris reduce efficiency.
- Inspect Connections: Tighten loose wires and replace corroded components.
- Monitor Battery Health: For tubular batteries, check electrolyte levels periodically. For lithium-ion, ensure the BMS is operational.
Troubleshooting Common Issues
System Not Producing Power
- Check panel alignment and wiring.
- Inspect the inverter for error codes.
Batteries Not Charging
- Verify connections between the panels, inverter, and batteries.
- Check the charge controller settings.
Inverter Overloading
- Reduce the load by unplugging some appliances.
- Upgrade to a higher-capacity inverter if needed.
Conclusion
Installing a solar power system doesn’t have to be complicated. By following this guide, you’ll have all the knowledge you need to set up a reliable and efficient solar inverter system, from mounting roof panels to wiring batteries. Take control of your energy future today and start enjoying the benefits of solar power.
