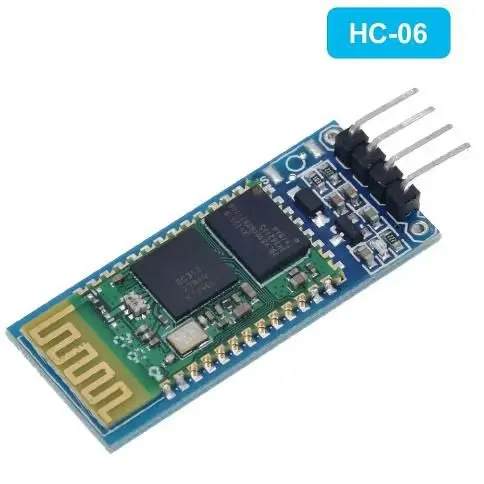

HC-06 Bluetooth Module

Name: HC-06 Bluetooth Module
SKU: 014
Price: 3000.00 NGN
Availability: InStock

Original price was: ₦4,000.00.Current price is: ₦3,000.00.

he HC-06 is a transparent TX/RX pipeline Bluetooth module that allows devices to communicate via a serial connection with all of the Bluetooth specific handling taken care of by the module’s software stack.

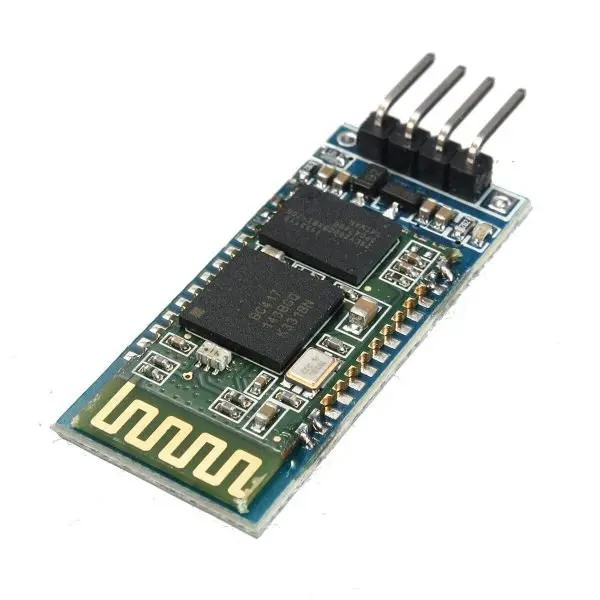

The HC-06 module itself is mounted onto a breakout board which provides easy, breadboard-friendly 0.1″ headers for Power, Ground, TX, RX, and enable pins. This breakout board unfortunately no longer provides on-board logic level conversions. To keep your board safe we recommend adding a separate logic level breakout to ensure that you don’t run into any issues with voltage spikes. You are able to power it from an Arduino’s 5V pin or a microcontrollers regulated 5V supply

The communication with this HC-06 module is done through UART interface. The data is sent to the module or received from the module though this interface. So we can connect the module to any microcontroller or directly to PC which has RS232 port (UART interface).

1 in stock

SKU: 014 Categories: Accessories, Bluetooth Module, Board, Modules, wireless modules Tags: bluetooth, bluetooth module, wireless connectivity

Description
Reviews (0)

Description

Pin	Name	Function
1	Key	The pin state determines whether the module works in AT command mode or normal mode [High=AT commands receiving mode(Commands response mode), Low or NC= Bluetooth module normally working]
2	Vcc	+5V Positive supply needs to be given to this pin for powering the module
3	Gnd	Connect to ground
4	TXD	Serial data is transmitted by module through this pin (at 9600bps by default), 3.3V logic
5	RXD	Serial data is received by module through this pin (at 9600bps by default),3.3V logic
6	State	The pin is connected to the LED on the board to represent the state of the module
