Sale!

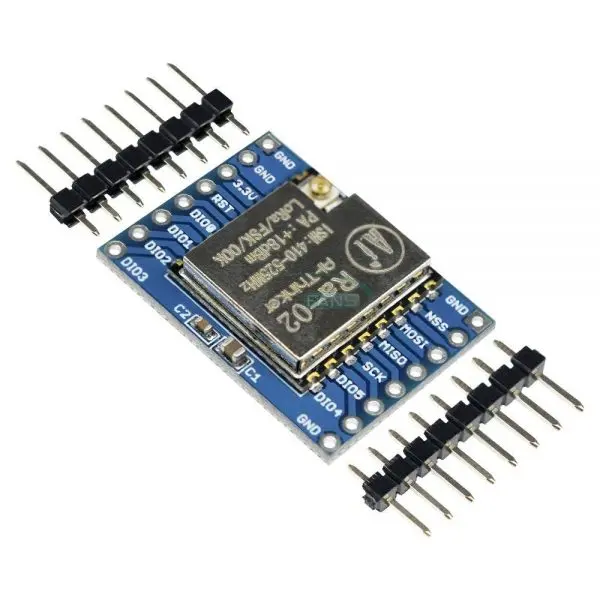

SX1278 LoRa Module 433MHz Frequency

Original price was: ₦6,000.00.Current price is: ₦4,500.00.

This is an SX1278 Long Range (LoRa) Module of 433MHz bad Frequency with Serial port  Interface (SPI). The Ra-01 wireless communication module has the following special features.

Product Features:

  • Spread Spectrum Wireless Module, SX1278 LoRa, 433MHz, Wireless Serial Port, SPI Interface, Ra-01
  • LoRa™ spread spectrum modulation technology
  • Ultra long-distance communication 15KM
  • Half-duplex SPI communication
  • Programmable bit rate up to 300kbps
  • Support FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

10 in stock

SKU: 249 Categories: ,

Description

Module Technical Specifications:

  • Power supply: DC1.8-3.7V (3.3V)
  • Chip: SX1278
  • Frequency: 433Mhz
  • Working temperature: -40~+85°C
  • High sensitivity: as low as -148dBm
  • Dynamic range: 127dB RSSI
  • +20dBm-100mW voltage constant at RF power output
  • Automatic RF signal detection, CAD model and ultra-high-speed AFC
  • Use CRC, up to 256 bytes of packet engine
  • Small double-printed hole size SMD package shielding shell

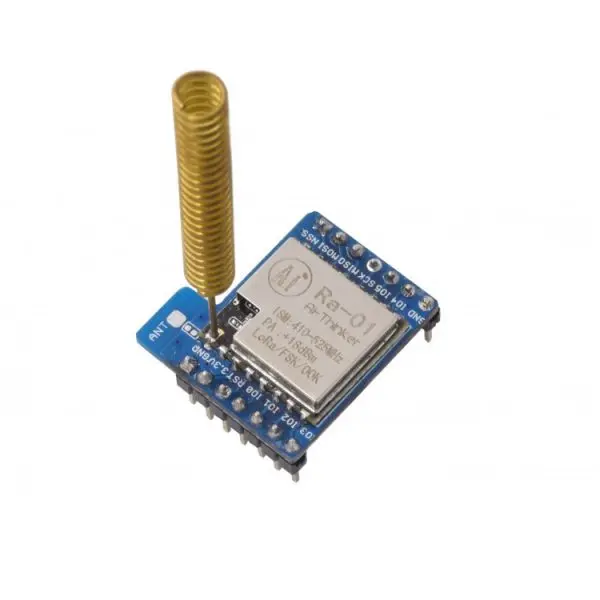

  • Spring antenna (Ra-01)
