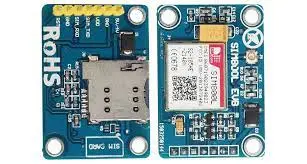

Sim800L (EVB Type).

Original price was: ₦8,500.00.Current price is: ₦7,500.00.

Technical Specifications:

  • Supply Voltage: 3.7V ~ 5VDC
  • Power Saving: Sleep mode 0.7mA (AT+CFUN=0)
  • Frequency Bands:  Quad-Band: GSM850, EGSM900, DCS1800, PCS1900
  • Transmitting Power
    • Class 4 (2W) at GSM850, EGSM900
    • Class 1 (1W) at DCS1800, PCS1900
  • GPRS Connectivity
    • GPRS Multi-Slot Class 12 (Default)
    • GPRS Multi-Slot Class 1-12 (Option)
  • Temperature Range: -40 to +85 °C
  • Storage Temperature: -45 to +90 °C
  • Data GPRS
    • GPRS Data down-link transfer max: 85.6 kbps
    • GPRS Data up-link transfer max: 85.6 kbps
    • Coding Scheme: CS-1, CS-2, CS-3 and CS-4
    • PAP Protocol for PPP connect
    • Integrate TCP/IP Protocol
    • Support Packet Broadcast Control Channel (PBCCH)
    • CSD Transmission Rates: 2.4, 4.8, 9.6, 14.4 kbps
Category:

Description

The SIM800L Quad-band Network Mini GPRS GSM Breakout Module is based on SIM800L module, supports quad-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 1mA in sleep mode. It communicates with the microcontroller via UART port, supports command including 3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands.
