Arduino UNO R3 SMD

Original price was: ₦8,000.00.Current price is: ₦7,500.00.

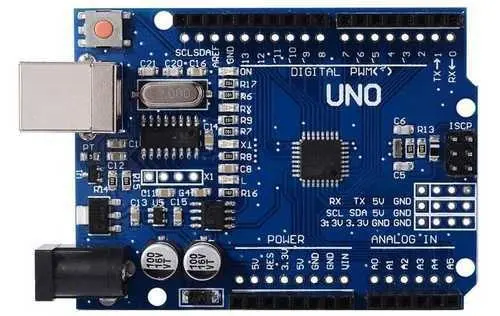

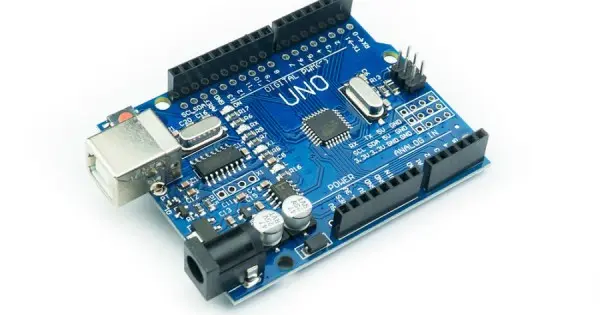

This Uno R3 SMD, has most of the features of the Uno with the added benefit of an ISP header and CH340G interface. The UNO can be programmed over a USB B cable using the Arduino IDE: Just plug in the board, select “Arduino UNO” from the board menu and you are ready to upload sketches. You can power the UNO Board over USB or through the barrel jack. The on-board power regulator can handle anything from 7 to 15 Vdc.

10 in stock

SKU: 525 Category:

Description

Technical Specifications:

  1. ATmega328P-AU microcontroller
  2. USB Programming Facilitated by the CH340G
  3. Header Pins Included.
  4. Input voltage – 7-15V
  5. 0-5V outputs with 3.3V compatible inputs
  6. 14 Digital I/O Pins (6 PWM outputs)
  7. 6 Analog Inputs
  8. ISP Header
  9. 32k Flash Memory
  10. 16MHz Clock Speed
  11. All SMD Construction
  12. R3 Shield Compatible
