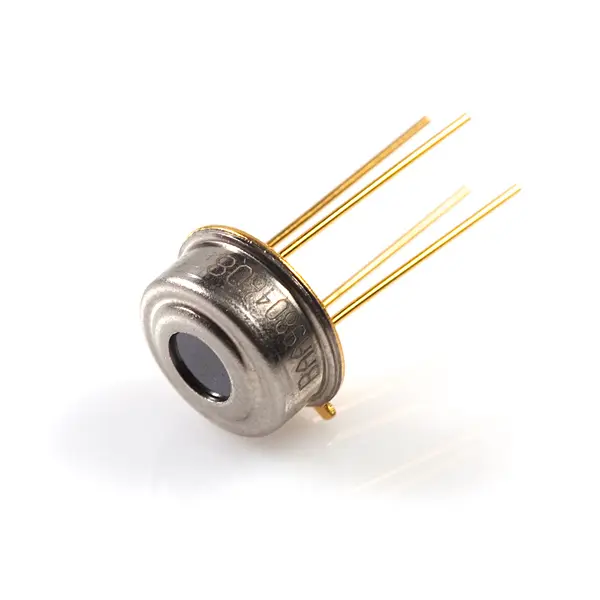

MLX90614 infrared temperature sensor

Digital Non-Contact infrared Temperature sensor MLX9014 is an infrared thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can. Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

2 in stock

Description

Features and benefits

Small size and low cost
Easy to integrate
Factory calibrated in wide temperature range: -40 to 125°C for sensor temperature and -70 to 380°C for object temperature
High accuracy of 0.5°C over wide temperature range (0..+50 C for both Ta and To)
Medical accuracy of 0.1°C in a limited temperature range available on request
Measurement resolution of 0.02°C
Single and dual zone versions
SMBus compatible digital interface for fast temperature readings and building sensor networks
Customizable PWM output for continuous reading
Available in 3V and 5V versions
Simple adaptation for 8 to 16V applications
Power saving mode
Different package options for applications and measurements versatility
Automotive grade

Pin No.	Pin Name	Description
1	Vdd (Power supply)	Vdd can be used to power the sensor, typically using 5V
2	Ground	The metal can also act as ground
3	SDA – Serial Data	Serial data pin used for I2C Communication
4	SCL – Serial Clock	Serial Clock Pin used for I2C Communication
